EF-1 Two Valve Group
Product overview
Product model: EF-1
Nominal pressure: PN2.5 PN6.3 PN16 PN32MPa
Nominal diameter: DN5
Applicable medium: oil, water, gas and other non-corrosive and corrosive media
Applicable temperature: -40℃-570℃
Manufacturing materials: 20 # 1 cr18ni9ti, 0 cr18ni12mo2ti, 316 l, etc
Pipe: steel pipe 12, 14, 16, 18, copper pipe 6, 8, 10
Connection thread: G1/2" 1/2NPT G1/4" 1/4NPT
EF-1 Two Valve Group product description
EF-1 Two Valve Group produced and sold by Baigang valve group is our company in the United Kingdom, the United States, Japan, Singapore and other countries in recent years instrumentation valve group structure based on the design of a small structure, beautiful appearance, reliable performance, easy to use and flexible, Standardization, high degree of generalization. The valve will be cut off, calibration and exhaust set of three devices, through the flange can be connected with the transmitter, compact structure, reducing the easy leak connector. The valve has two female joints for pressure gauge, pressure sensor or pressure switch installed. The series of valves can be used in a variety of domestic and foreign pneumatic or electrical differential pressure (pressure) transmitter and other instruments supporting the installation.

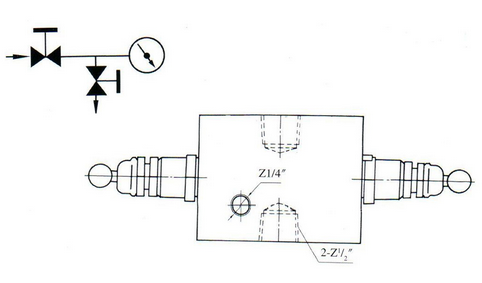

EF-1 Two Valve Group block diagram
EF-1 Two Valve Group main performance parameters
|
Serial number |
Nominal pressure |
import |
Export |
proper temperature |
Body material |
|
1 |
20MPa |
NPT1 / 2 |
NPT1 / 2 |
-20 to 440 ° C |
Carbon steel |
|
2 |
-70 ~ 2400 ℃ |
stainless steel |
|||
|
3 |
40MPa |
-20 to 440 ° C |
Carbon steel |
||
|
4 |
-70 ~ 240 ℃ |
stainless steel |
Reminder:
All text, data and pictures in this article are for reference only.To see more details of the EF-1 Two Valve Group performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
