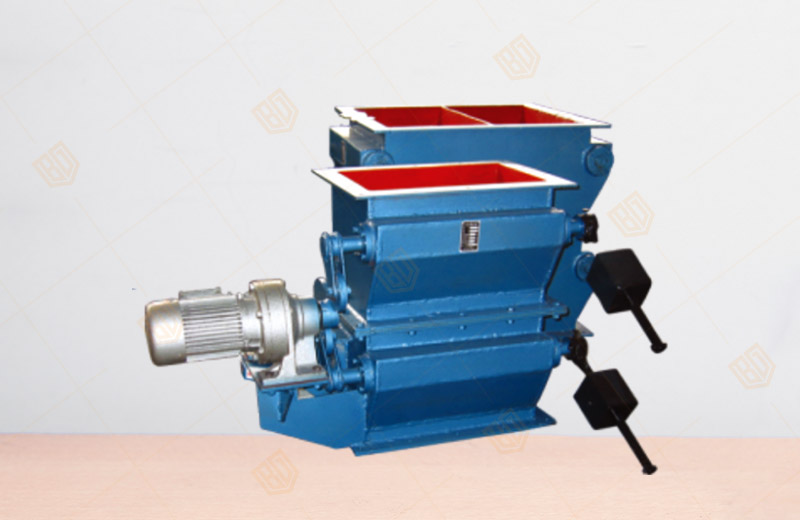

DXF-II Electric Double-deck Ash Discharge Valve
Product overview
Product model: DXF-II
Nominal diameter: DN150~800mm
Applicable temperature: ≤300℃
Drive mode: heavy hammer, electric
Applicable medium: dust material, solid small particles
Ash discharge volume: 1.5-250m3/h
DXF-II Electric Double-deck Ash Discharge Valve Overview:
DXF-II Electric Double-deck Ash Discharge Valve produced and sold by Baigang valve group is a new type of product designed and manufactured on the basis of the performance characteristics of common ash-discharging valve at home and abroad. It is an ideal unloading valve in metallurgy, non-ferrous and environmental dust removal equipment.
The valve drive mechanical transmission, transmission smooth, no impact, no failure, replacement spare parts less, the use of reliable. The valve is divided into two layers, the first work by the mechanical drive to open the valve, by spring tension to close the valve on their own, and then by the mechanical transmission to open the next valve, closed by spring tension valve, thus completing a unloading cycle. (Adjustable spring tension)
DXF-II Electric Double-deck Ash Discharge Valve main technical parameters:
|
Nominal diameter DN |
Flange diameter D |
Screw hole center distance D1 |
The total height H |
The maximum width L |
nd |
Ash capacity (m3 / h) |
Frequency of opening (times / min) |
Motor power kw |
|
150 |
226 |
196 |
580 |
1400 |
6 - φ11 |
6 |
17 |
1.1 |
|
200 |
290 |
250 |
580 |
1500 |
8 - φ11 |
12 |
17 |
1.1 |
|
220 |
300 |
265 |
580 |
1540 |
8 - φ11 |
14 |
17 |
1.1 |
|
250 |
300 |
300 |
760 |
1610 |
8 - φ13 |
18 |
17 |
1.1 |
|
300 |
390 |
350 |
760 |
1840 |
12 - φ13 |
20 |
12 |
1.5 |
|
320 |
410 |
370 |
760 |
1980 |
12 - φ13 |
23 |
12 |
1.5 |
|
400 |
490 |
450 |
900 |
2060 |
16 - φ13 |
25 |
8 |
2 |
|
450 |
540 |
500 |
900 |
2180 |
16 - φ13 |
29 |
8 |
2 |
|
500 |
600 |
560 |
900 |
2210 |
16 - φ13 |
36 |
8 |
3 |
|
600 |
700 |
660 |
1200 |
2310 |
20 - φ13 |
43 |
8 |
3 |
|
720 |
820 |
780 |
1200 |
2380 |
24 - φ13 |
52 |
8 |
4 |
|
800 |
900 |
860 |
1200 |
2420 |
24 - φ18 |
58 |
5 |
4.5 |
Reminder:
All text, data and pictures in this article are for reference only.To see more details of the DXF-II Electric Double-deck Ash Discharge Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
