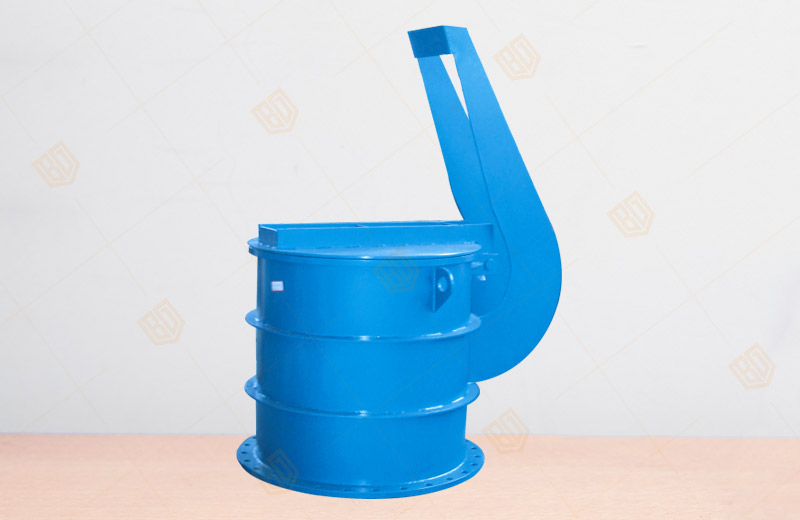

XYF Pressure Relief Valve
Product overview
Product model: XYF
Nominal diameter: 300~1600
Nominal pressure: ≤0.1~0.25MPa
Applicable temperature: ≤200℃
Applicable medium: compressed explosive gas
XYF Pressure Relief Valve characteristic
XYF Pressure Relief Valve produced and sold by Baigang valve group is mainly used in pipeline terminal, control pipeline pressure, the size of the control pressure can be adjusted by the counterweight at the top of the cover, when the system pressure exceeds the fixed pressure when the pressure relief valve cover burst open pressure relief, suitable for metallurgical, cement, petrochemical and other industrial sectors.
XYF Pressure Relief Valve main dimensions
|
DN |
D |
D1 |
H |
L |
b |
& |
N-&d |
|
800 |
958 |
885 |
1719 |
1106 |
12 |
8 |
24-24 |
|
1000 |
1175 |
1120 |
2260 |
1350 |
20 |
10 |
28-30 |
|
1300 |
1415 |
1375 |
2850 |
1550 |
20 |
10 |
32-24 |
Reminder:
All text, data and pictures in this article are for reference only.To see more details of the XYF Pressure Relief Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
